What is Diesel Exhaust Fluid (DEF)?

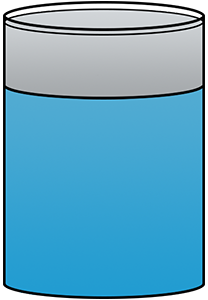

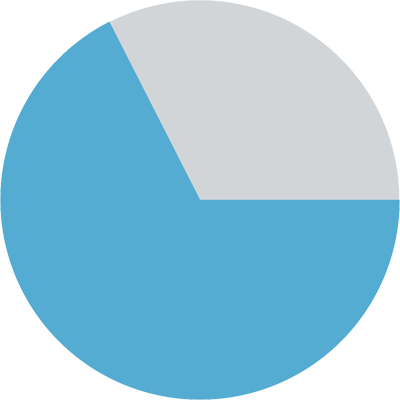

DEF is a clear, non-toxic, non-flammable, and nonhazardous organic compound consisting of 32.5% urea and 67.5% de-ionized water that requires no special handling.

Urea

De-ionized Water

Non-toxic
Non-flammable
Non-hazardous
Organic

Why Use Diesel Exhaust Fluid (DEF)?

To achieve the nitrogen oxide (NOX) levels required by the EPA 2010 standard, most engine manufacturers are utilizing Selective Catalytic Reduction (SCR) systems that require the addition of DEF. Off-road engines will be impacted by similar emission standards which began in 2014.

How Long Can Diesel Exhaust Fluid (DEF) Be Stored?

DEF can be stored at temperatures of between 12°F (-11°C) and 86°F (30°C) for a maximum of 12 months.

Shelf life deteriorates to 6 months when temperatures are held at a constant 95°F (35°C) or higher.

How Does the SCR Process Work?

The NOX reduction process starts with an engine burning clean Ultra Low Sulfur Diesel and producing exhaust that is already much cleaner due to leaner and more complete combustion.
Under the control of the vehicle's onboard computer, precisely metered spray patterns of DEF are injected into the exhaust stream ahead of the SCR converter allowing the exhaust gases and atomized mist of DEF to enter the converter simultaneously. Together with the catalyst inside the converter, the mixture undergoes a chemical reaction that converts the nitrogen oxides to elemental nitrogen (N2) and water (H2O).
Exhaust gases are monitored via a sensor as they leave the SCR catalyst. Feedback is supplied to the main computer that adjusts the DEF flow to keep NOX levels within acceptable parameters.

How Many Litres of DEF Will I Use On Average?

Consumption rates vary but are usually around 5% of diesel fuel consumed. It can be expected that 5 litres of DEF fluid will be used for every 100 litres of diesel fuel.

It can be expected that 5 litres of DEF fluid will be used for every 100 litres of diesel fuel.

How Do I Know When to Refill the DEF Tank?

The EPA requires manufacturers to put measures in place to ensure that SCR equipped diesel engines do not run without DEF. In response, manufacturers have equipped both on-road and off-road SCR units with multiple step driver notification systems. Before the DEF tank runs empty, the operator is given a series of alerts on their dashboard display.

DEF notification systems vary among manufacturers but all are designed to give the operator ample opportunity to refill the DEF storage tank before any impact to full operability. However, if driver inducments are ignored and DEF levels become too low or the fluid is of poor quality, the engine is derated and ultimately speed is limited to 5mph (8kph).
